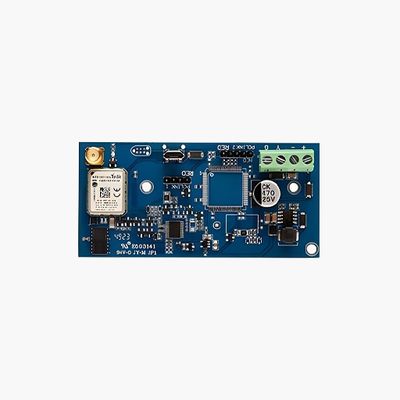

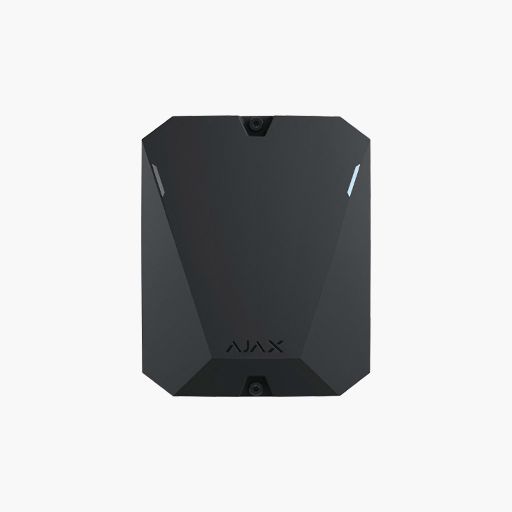

Multi-Transmitter Jeweller is an integration module for connecting third-party wired detectors and devices to an Ajax security system. It has 18 wired zones for connecting NC, NO, EOL, 2EOL and 3EOL devices.
Multi-Transmitter is equipped with two tampers that protect it against dismantling. The device is powered from the 100–240 V~ mains, and can also run on a 12 V⎓ backup battery. Can supply 10.5–15 V⎓ for connected detectors and devices.
Main Features
18 inputs for third-party wired devices
Up to 400 m of cable length between devices and Multi-Transmitter
9 types of alarms for each connected device
Numerous event types for each connected device
Rails for fixing the backup battery 4 or 7 Ah 1
Power lines for fire and intrusion detectors
Sabotage-proof body, tampers for opening and tearing of the surface
