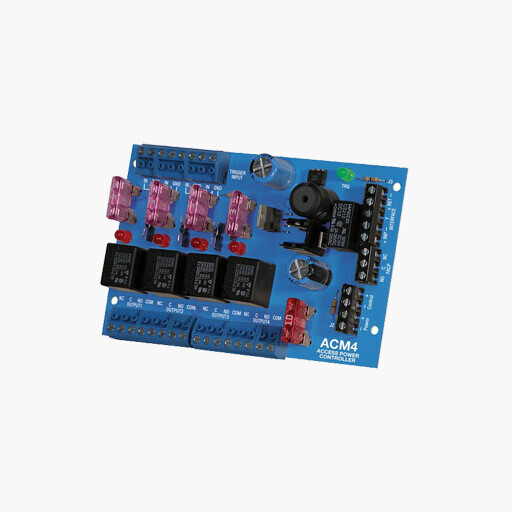

Altronix ACM4 converts one (1) 12 to 24 VAC or VDC input into four (4) independently controlled fuse protected outputs. These power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System,
Card Reader, Keypad, Push Button, PIR, etc. ACM4 will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes.
Main Features
Red LEDs indicate outputs are triggered
Fire Alarm disconnects is individually selectable for any or all of the four outputs
Four auxiliary power outputs
Removable terminal blocks facilitate ease of installation
Green LED indicates when FACP disconnect is triggered
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
