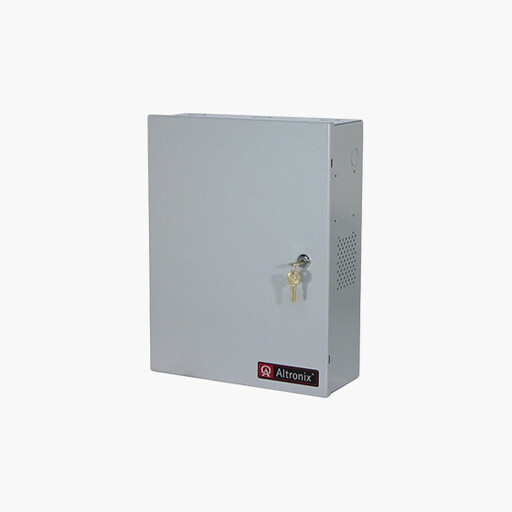

Altronix ACM series distribute and switch power to access control systems and accessories. They convert a 115VAC, 60Hz input into eight (8) independently controlled 12VDC or 24VDC fuse protected outputs.
These power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc.
Main Features
Access Power Controller with power supply
8 fused power limited outputs provide 12VDC or 24VDC @ 6A
Outputs are individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts
Fire alarm disconnect is selectable by output
UL and cUL listed
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
