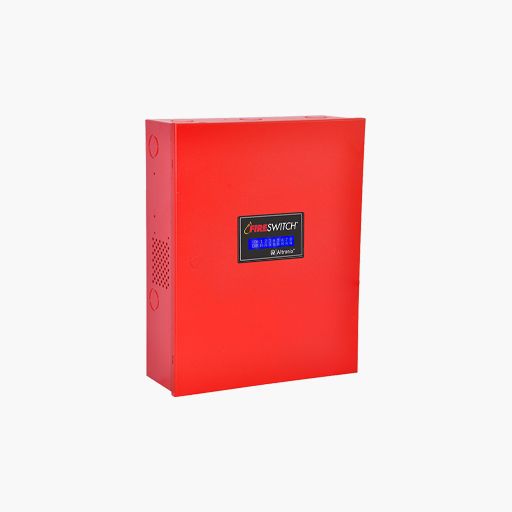

Altronix FireSwitch108 Networked NAC Power Extender adds greater flexibility and capacity to your system. Eight (8) Class B NACs are individually programmable for Aux. power or up to Four (4) Class A outputs.
FireSwitch generates CO Temporal Code 4, compatible with Gentex, Potter and System Sensor signals. Programmable LCD display interface and an ethernet port interface for remote programmability and monitoring add to flexibility and convenience.
Main Features
Local and remote status monitoring (LCD display/Ethernet port)
EOL resistor value is programmable by output
Temporal Code 3, Steady Mode and Input to Output Follower Mode
CO Temporal Code 4 (NFPA720) include Gentex, Potter and System Sensor devices
Thermal and short circuit protection with auto reset
Synchronize up to twelve (12) FireSwitch108 units
UL Listed in the U.S. and Canada for Fire Alarm Systems
California State Fire Marshall Approved
Power outputs are programmable as: 8 Class B NAC outputs; 4 Class A NAC outputs; Aux. power outputs ( with or without battery backup); Any combination of the above
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
