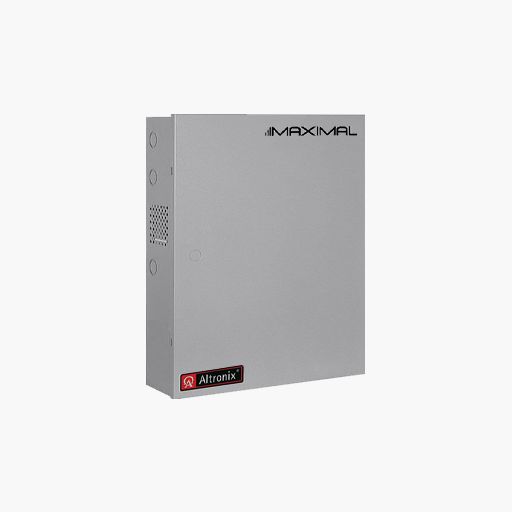

Altronix MAXIMAL11D Power Supply, 12V DC at 8A/24V DC at 6A

Description

Altronix Maximal D Series Access Power Controllers distribute and switch power to access control systems and accessories. They convert a 115VAC, 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC Class 2 Rated PTC protected power-limited auto-resettable outputs.

The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Main Features

• Sixteen (16) independently controlled Fail-Safe and/or Fail-Secure Class 2 Rated PTC protected power-limited outputs
• Sixteen (16) auxiliary power outputs (unswitched)
• Output PTCs are rated @ 2.5A
• Filtered and electronically regulated outputs
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
• Alarm output relay indicates that FACP input is triggered
• Built-in charger for sealed lead acid or gel type batteries
• Instantaneous transfer to stand-by batteries
• UL Listed in the U.S. and Canada

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
