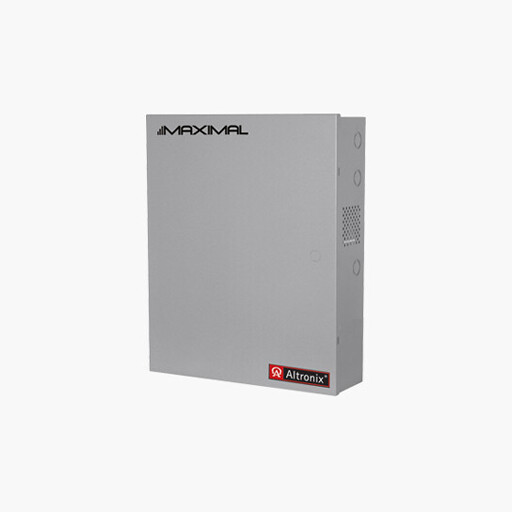

Maximal33D distributes and switches power to access control systems and accessories. Unit converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC Class 2 Rated PTC protected power limited outputs.
Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices.
Main Features
115VAC 60Hz, 7 amp input
12VDC and/or 24VDC outputs
Class 2 Rated power limited outputs
Sixteen (16) auxiliary power outputs (un-switched) (outputs are rated 2 amp)
Filtered and electronically regulated outputs (built-in power supply)
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
