This unit distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 24VDC PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc.
The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.
Main Features

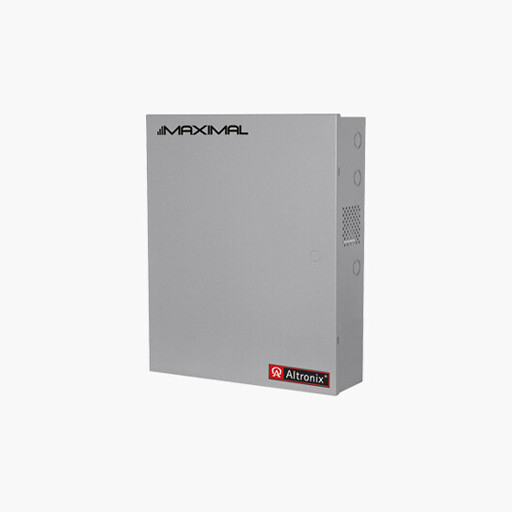

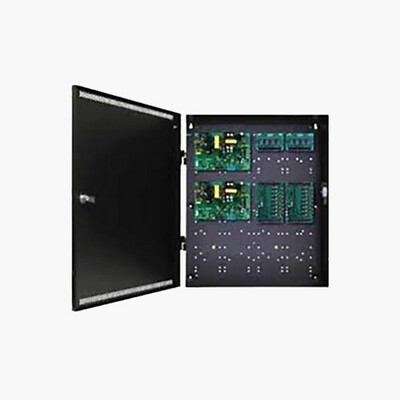

Rack Mount Access Power Controller with 2 power supplies
16 PTC power-limited outputs, each 8 outputs are rated at 24VDC @ 9.7A, individually selectable for Fail-Safe or Fail-Secure operation
Fire alarm disconnect selectable by output
UL and cUL listed
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
