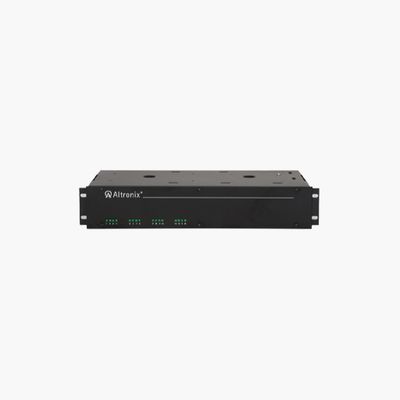

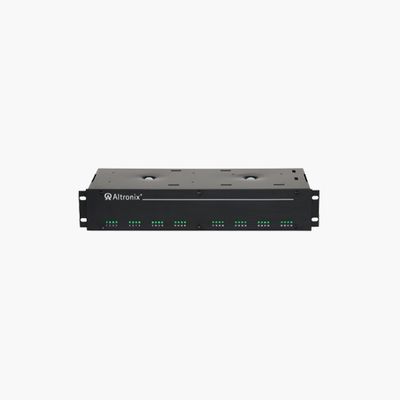

Altronix R1002ULADA is a space-saving 10A remote power supply/battery charger for fire signaling applications such as Notification Appliance Circuits expansion (strobes and horns) meeting ADA requirements.

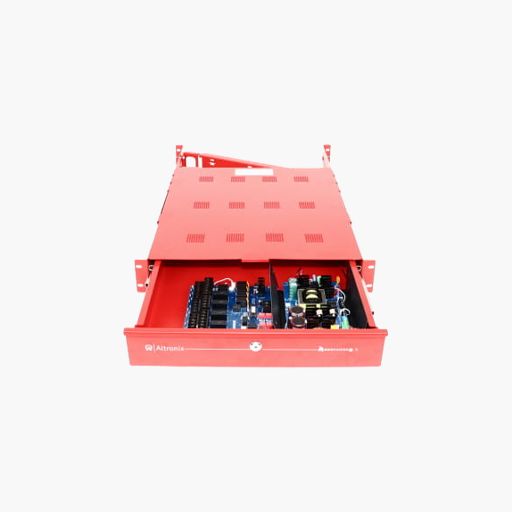

The rack mount drawer configuration is designed to be deployed where wall space is limited or may not be an option. R1002UALDA may be connected to any 12 or 24 volt Fire Alarm Control Panel (FACP). This unit delivers electronically regulated and filtered 24 volt power to Class B or Class A NAC loop circuits.
Main Features
Compatible with 12VDC or 24VDC fire panels
Programmable supervised indicating circuit outputs (Class A and Class B)
Sync protocols include Potter/Amseco, Gentex®, System Sensor®, and CooperWheelock®
Additional aux. output rated @ 1A
Temporal Code 3, Steady Mode, Input to Output Follower Mode
Signal circuit trouble memory
Ground fault detection
Built-in charger for sealed lead acid or gel type batteries.
Modular 2U standard EIA 19" rack mount chassis
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
