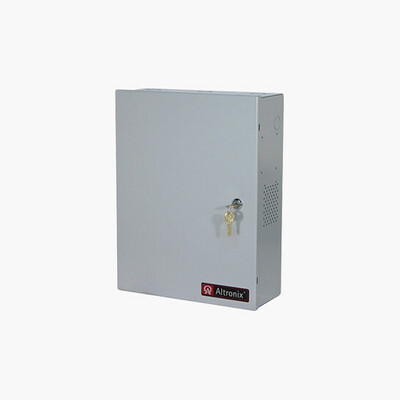

Altronix StrikeIt4 will operate up to two (2) low current lock hardware devices simultaneously. It is designed to operate motorized electric latch retraction exit devices, electric strikes, mag-locks, electric mortise and cylindrical locksets, etc. Each lock output has an adjustable re-lock delay timer.
It will control a pair of doors simultaneously, or independently control two single door leaf's. StrikeIt4 has integrated output relays which trigger automatic door operators and control ADA activation push plates/accessories.
Main Features
Two (2) 20VDC to 26.4VDC individually controlled lock outputs for applications with battery back-up. 24VDC for applications without battery back-up (US applications only). Current rating 15A for 300ms, 0.75A continuous supply current
5V holding voltage with 20VDC to 26.4VDC initial 100ms pulse. Maximum total 5V holding current of both outputs is 0.74A
One (1) 20VDC to 26.4VDC for applications with battery back-up, 24VDC for applications in US not requiring battery back-up. Auxiliary output rated @ 0.75 A continuous supply current (Not affected by FACP trigger)
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
