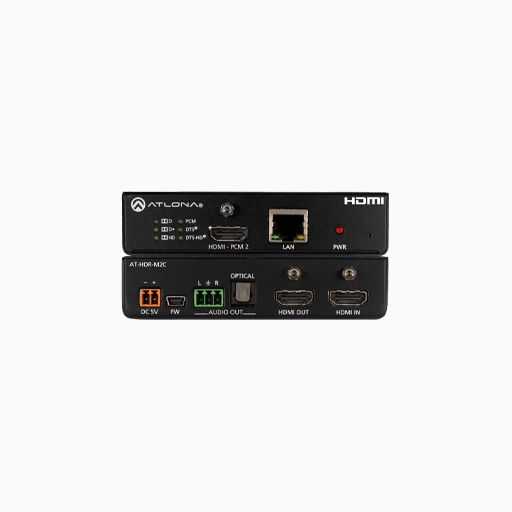

The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. It features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as unbalanced analog and TOSLINK digital audio outputs.
The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant. It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through the Atlona Management System (AMS), the web GUI, or a control system.
Main Features
HDMI® audio de-embedding and multi-channel audio downmixing
Downmixes multi-channel PCM, Dolby®, and DTS® formats to stereo audio
4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
HDCP 2.2 compliant
Delivers downmixed audio to HDMI, TOSLINK digital audio, and analog audio outputs
