The ATRIUM access control system redefines ease of use and performance. ATRIUM allows you to manage up to 500 doors, proximity card readers, keypads or Schlage® wireless door handles.

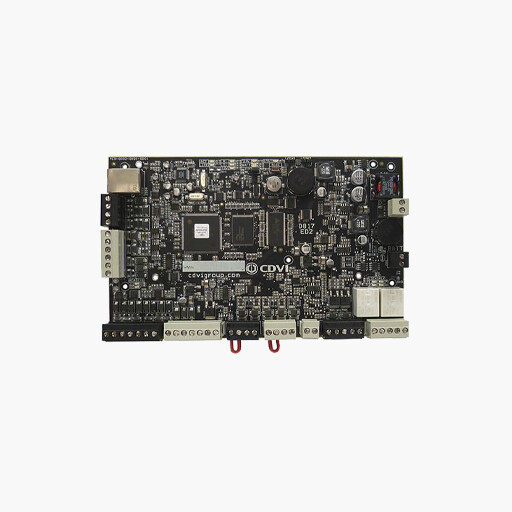

The A22 is ATRIUM’s powerful Web-Based IP hybrid module. The flexibility of the A22 module allows it to be set either as a 2-door controller or expander (2 in 1).
Main Features
Without metal enclosure
Controls 2 doors and 2 readers
Convert any A22 door controller to an A22EC elevator controller by simply updating the firmware for free (up to 256 floors).
On-board Ethernet Port with AES 256-bit encryption
On-board RS485 communication bus, 1220 m (4000 feet)
On-board Embedded Web Server
Auto-detect hardware modules
Quick and easy card enrollment procedure
Lock outputs: 2 (750mA @ 12VDC/each)
Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250VAC, 7A @ 125VAC, 7A @ 30VDC
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
