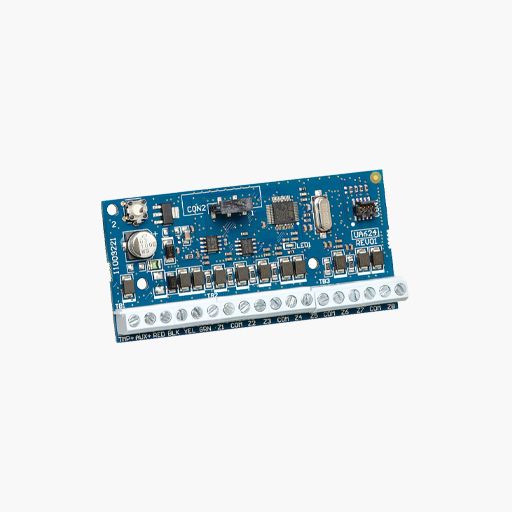

The HSM2108 is a zone input module that adds up to eight fully programmable zone to any PowerSeries Neo security system. Make PowerSeries Neo the ideal first-class solution for residential and scalable commercial installations.
PowerSeries Neo by DSC redefines intrusion security by combining the flexibility of a modular, hardwired system with the simplicity of a wide range of wireless devices and peripherals.
Main Features
Supports no end-of-line, single end-of-line and double end-of-line zone loops. (5,600 Ohm resistors)
Connect up to 15 modules per system
Tamper contact input
Dimensions: 45mm x 92mm (1.12/16” x 3 5/8”)
40 mA (Max)
12 VDC Nominal
Fully supervised expansion ensures constant communication with PowerSeries Neo control panel
Simple wiring can be home run, daisy chained or tee-tapped anywhere on the Corbus
