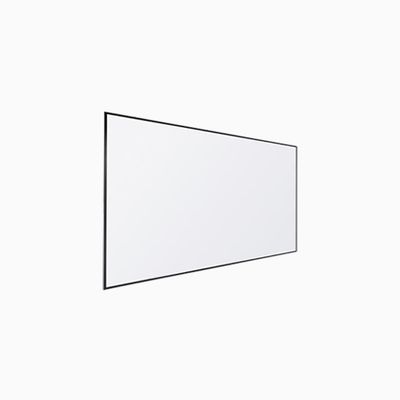

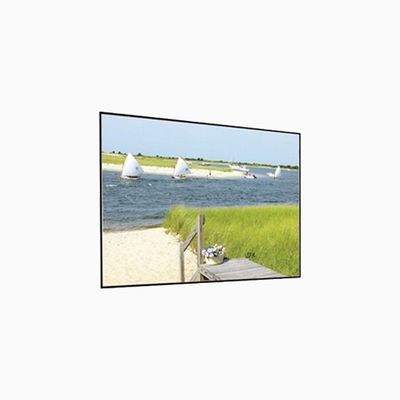

Sharper image quality makes the fixed frame Onyx projection screen ideal for control centers, boardrooms, training centers, home theaters, or any application that requires better image quality. Housed in a larger "picture frame" style, the Onyx offers a beautifully framed image for any home or commercial décor.
There are no snaps! Unique fabric retention system enables uniform tension adjustment to the entire surface area, without tools, to provide a truly flat viewing surface in seconds. The result is excellent image quality and quick and easy assembly. The Onyx is available for custom curved applications; please contact Draper for more information.
Main Features
Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
Maximum image width up to 16' (488 cm) wide, depending on surface selection.
The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
Adjustable or removable hoisting brackets included for easy lifting during installation.
Sliding brackets on top of the case allow for adjustments for mounting.
Sliding brackets inside case accommodate different size screens.
Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
Quick-connect wiring allows for early installation of the case with the addition of the screen later.
