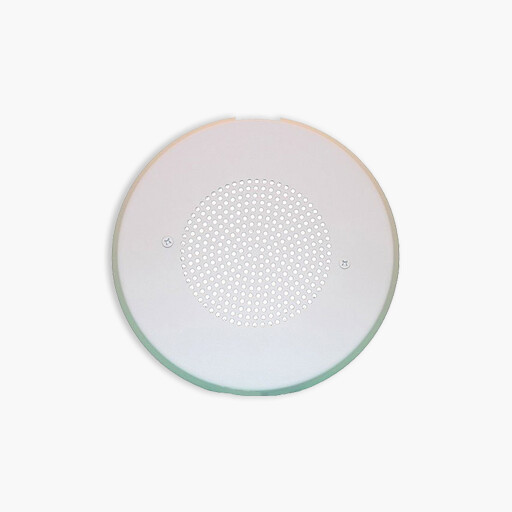

The Eaton Wheelock CH chimes and chime strobes by Eaton minimize alarm system power supply requirements and wiring costs with a low current draw and a patented chime mounting plate for fast, easy installation. Each model has a built-in level adjustment feature and an aesthetic two (2) screw grille cover.
These unique solid-state chime appliances provide field selectable 1 Hz, 2 Hz, Coded, or Temporal 3 (T3) with Anechoic sound levels adjustable up to 80 dB and tone frequency of 890 Hz.
Main Features
Eaton Wheelock CH Chime, wall, white, indoor
Wall mount models: Field selectable candela settings of 15/30/75/110 cd or 135/185 cd (multi-candela models)
Ceiling mount models: Field selectable candela settings of 15/30/75/95 cd or 115/177 cd (multi-candela models)
Low current draw to reduce power consumption and wiring costs
24 VDC with wide UL “Regulated Voltage” using filtered DC or unfiltered VRMS input voltage
Synchronize using the Wheelock Sync Modules or panels with built-in Wheelock Patented Sync Protocol
