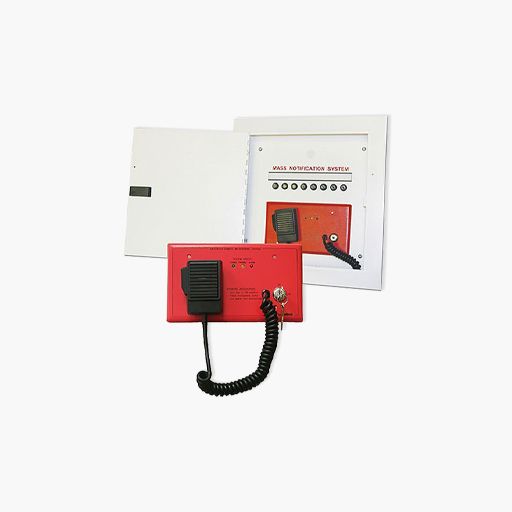

The SP4-LOC Remote Microphone and Local Operator Console is designed for indoor use with the SafePath4 SP40/2 and the SP40S panels for mass notification applications.
The SP4-LOC contains the SafePath4 SPRM Remote Microphone module and eight black push on/push off buttons which provide a contact closure used to activate the SP40/2 or SP40S digital messages in the ON position.
Main Features
All message wiring is pre-wired to a terminal block
Internal terminal block accepts up to 16 AWG wiring for filed wiring
Built-in SPRM requires 24VDC, supplied by the SP40/2 or SP40S
SPRM Input current: Standby: 26mA Alarm: 38mA
All output circuitry is Power Limited
SP4 LOC is available in flush and surface models
Backbox for both models are identical with knockout mounting holes in the sides and back
