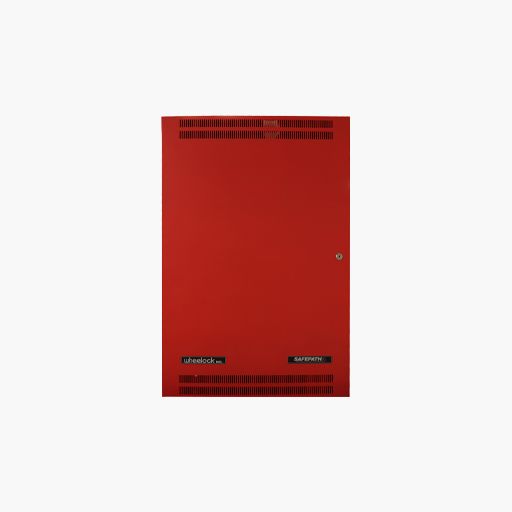

The SAFEPATH Supervised Audio and Audio/Strobe Power Boosters with 24VDC battery backup capabilities are designed for the SAFEPATH4 Voice Evacuation System and SAFEPATH Mass Notification System to provide for additional supervised audio power for live voice or pre-recorded messages.
Multiple SPB-320, SPB-160 and SPB-80/4 Audio Boosters can be inter-connected to accommodate large installations with supervised audio power and also supervised and synchronized strobe power requirements.
Main Features
Expands one zone to up to 2 zones of supervised speaker audio output in Class A
Expands one zone to up to 4 zones of supervised speaker audio output in Class B
Each Class A zone can accept up to 40 watts of audio
Each Class B zone can accept up to 40 watts of audio
Operates on either 25V or 70.7V RMS
Mounts inside the enclosure of the SP40S, SP40/2 or audio boosters
Power and Trouble LED’s
Individual zone short and open LED indication
Capable of detecting wiring faults
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
