90286 module mounting kits are required to install addressable modules on HPF24S Series power supply main circuit boards. The kit includes four female/female and four male/female standoffs as well as four mounting screws.

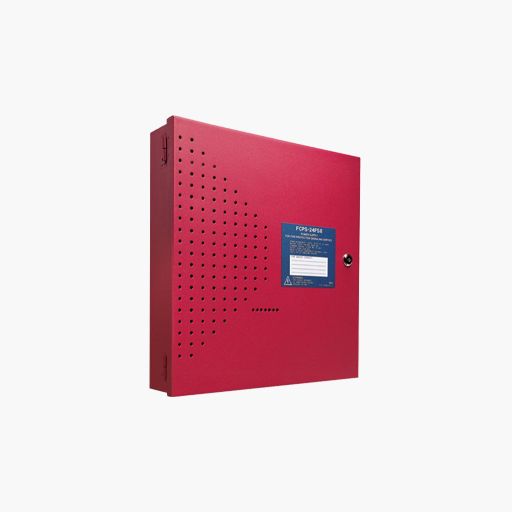

The FCPS provides regulated and filtered 24 VDC power to four notification appliance circuits configured as either two Class B (Style Y) and Class A (Style Z, with ZNAC-4 option module) or four class B only.
Main Features
4-amp continuous output in stand-alone mode (UL 1481)
Compatible with coded inputs; signals passed through
Optional power-supervision relay (EOLR-1)
6-amp full load output, with 3 amps maximum/circuit, in NAC expander mode (UL 864)
Two Class B (Style Y) or Class A (Style Z, with ZNAC-4 module) NACs (circuits 1 & 3)
Operates as a “sync-follower” or as a “sync-generator” (default) See note on page 2.
UL-Listed Notification Appliance Circuit (NAC) synchronization using System Sensor®, Wheelock®, or Gentex® “Commander2” appliances
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
