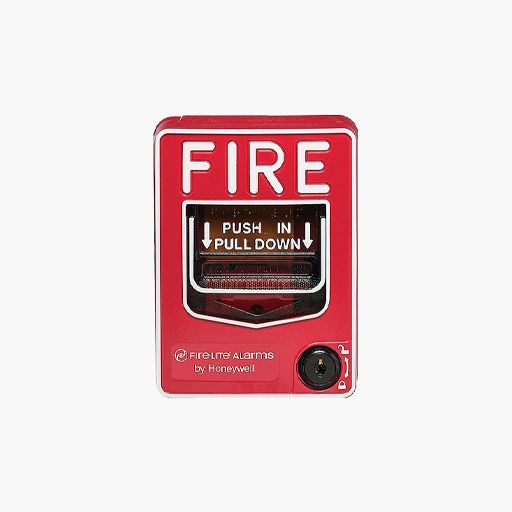

The Fire Lite BG-12LX is a state-of-the-art, dual-action (i.e., requires two motions to activate the station) pull station that includes an addressable interface (mounted inside) for Fire Lite’s addressable fire alarm control panels (FACPs) Because the BG-12LX is addressable, the control panel can display the exact location of the activated manual station.
Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm.
Main Features
Maintenance personnel can open station for inspection and address setting without causing an alarm condition
Handle latches in down position and the word “ACTIVATED” appears to clearly indicate the station has been operated
Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm² wire)
Attractive shape and textured finish
Key reset
Includes Braille text on station handle
UL864 Rev 9 Listed
Meets UL 38, Standard for Manually Actuated Signaling Boxes
Smooth dual-action design
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
