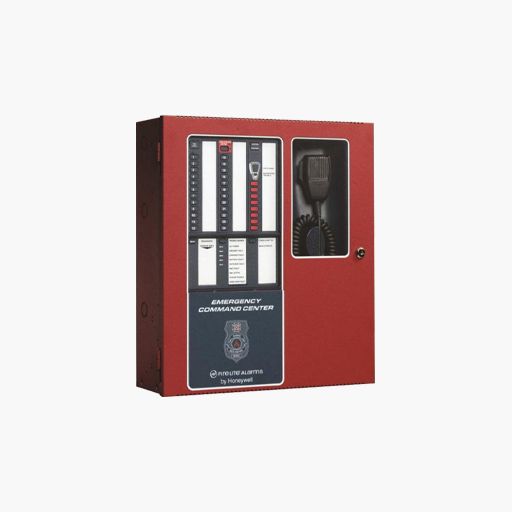

The ECC-50/100(E) includes three built-in Form C relay contacts, a NAC follower input for triggering the onboard NAC circuit, and 500 mA special application power.
For fire protection applications, the ECC-50/100(E) is an adjunct (slave) to any UL Listed FACP, providing reverse polarity or contact closure- can be used as a standalone unit for non-fire applications.
Main Features
Modular design for system flexibility and easy expansion
Removable terminal blocks for ease of servicing and module replacement
Certified for seismic applications when used with the appropriate seismic mounting kit
Integral supervised microphone
Microphone time-out feature which reverts back to prerecorded message if emergency page exceeds the programmed time
Integral tone generators field-selectable for multiple tone types
Optional TR-CE semi-flush trim ring
System status LEDs (refer to “Controls and Indicators” in product manual LS10001-000FL-E)
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
