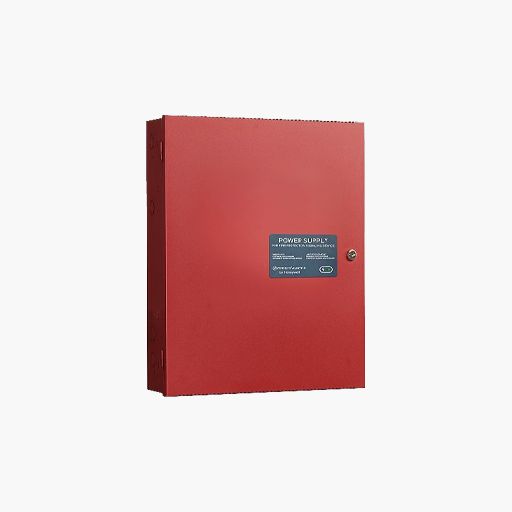

The PS Series is a remote power supply line from Fire•Lite Alarms and is a direct replacement for the FCPS-24FS6/8 Series. The FL-PS6(C) is a 6 amp and the FL-PS10(C) is a 10 amp, remote power supply with battery charger that may be connected to any 12 or 24 volt fire alarm control panel.
The PS Series also provides auxiliary power, constant or resettable, suited for detectors, annunciators, door holders, and other fire alarm system peripherals. The PS Series cabinet can hold two 7 AH or 18 AH batteries and can charge up to 33 AH batteries in a separate cabinet.
Main Features
Optimal for powering four-wire smoke detectors, annunciators, and other system peripherals requiring regulated power
Configurable for ANSI® Temporal 3 or Temporal 4 coded output
Ability to cascade up to four power supplies
Two (6 amp model) or three (10 amp model) fully-isolated input/ control circuits which can be programmed to any output
Individual NAC power and trouble LEDs for diagnostic efficiency
Trouble history modes for diagnostic support
Wide range end-of-line supervision value (normal: 2K-27K ohms)
