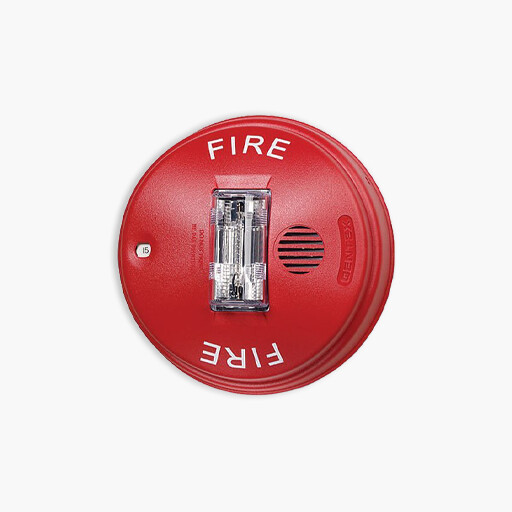

The Commander4 Series is a ceiling mount strobe or horn/strobe combination that offers dependable audible and visual alarms and the lowest current consumption.
The GCS/GCC offers tamperproof field selectable candela options of 15, 30, 75, 95, 115 and 150 candela. The GCC horn offers a continuous or synchable temporal three in 2400Hz and mechanical tones. All tones are easy for the professional to change in the field by using switches.
Main Features
Nominal voltage 24 VDC
Tamperproof field selectable candela options of 15, 30, 75, 95, 115 & 150
Unit Dimensions: 6" (15.24 cm) x 2.6" (6.604 cm)
Super-Slide® Bracket, Ease of Supervision Testing
Checkmate® Instant Voltage Verification
Prewire entire system, install mounting bracket, then install signals
Documented lower installation and operating costs
Input terminals 12 to 18 AWG
Horn/strobe switch selection for high or low dBA
Horn/strobe switch selection for 2400Hz or mechanical tone
Horn/strobe switch selection for continuous or temporal 3
Synchronize strobe and/or horn with Gentex AVSM Control Module
Silence audible while visual appliance will remain flashing
Tamperproof re-entrant grill
Surface mount with the GCSB (Gentex Ceiling Surface Mount Box)
