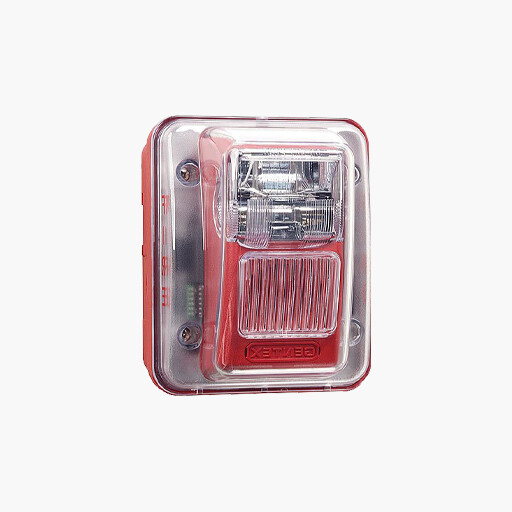

The Outdoor Colored Lens Commander Series are wall mount strobes and horn/strobes that offer dependable audible and visual alarms for warning and emergency notification in outdoor locations. Applications include severe weather, emergency response and many more.
The Outdoor Colored Lens Commander Series are 24 VDC available in lens colors of amber, blue, green and red. The Series offers a fixed 75 candela strobe. The WGEC horn/strobe offers a continuous or synchable temporal three in 2400Hz, mechanical and chime as well as a whoop tone. All tones are easy for the professional to change in the field by using switches.
Main Features
Nominal voltage 24VDC
Unit is shipped with ANSI/UL1638 listed WGE colored lens strobe or horn/strobe
Listed to ANSI/UL1638 when used with the GOE or GOELP enclosure
GOE/GOELP made of clear Lexan® - allowing full 75cd output
GOE Unit Dimensions: 5.75" (14.605 cm) high x 4.75" (12.065 cm) wide x 4.18" (10.617cm) deep
GOELP Unit Dimensions: 5.75" (14.605 cm) high x 4.75" (12.065 cm) wide x 3.25" (8.255 cm) deep
Lens colors available: amber, blue, green and red
Super-Slide® - Ease of Supervision Testing
Checkmate® - Instant Voltage Verification
Prewire entire system, install mounting bracket, then install signals
Input terminals accept 12 to 18 AWG
Switch selection for high or low dBA
Switch for 2400Hz, mechanical, chime and whoop tones
