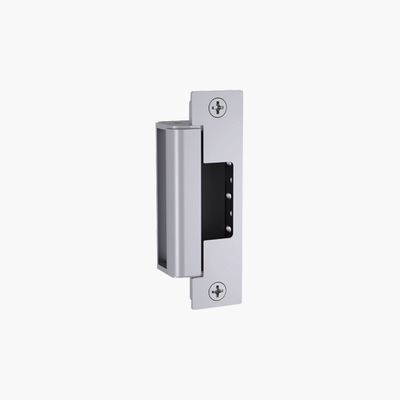

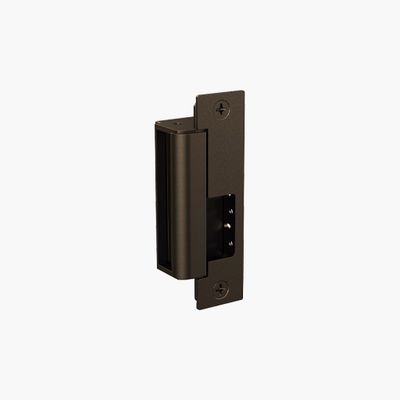

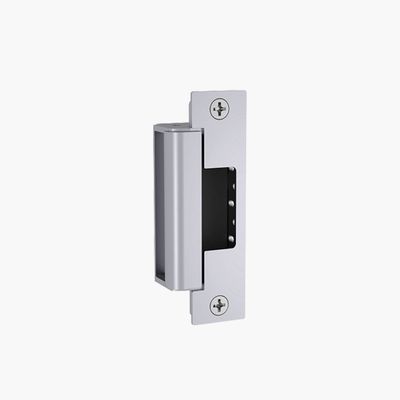

HES 4500C-12/24-630 4500C Series Electric Strike Complete Pac

Description

The 4500C series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction.

The HES 4500C includes two faceplates designed to accommodate either cylindrical or mortise locksets up to a 3/4" throw latch bolt. Its strength is derived from a unique keeper pin locking design, enabling the HES 4500C to exceed the ratings of the frame, door and locking hardware.

Main Features

• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 100 ft-lbs
• Endurance 1 million cycles
• Stainless steel construction
• Internally mounted solenoid
• Strike body depth 1-3/8" [34.9mm
• Trim enhancer
• Field selectable fail safe/fail secure
