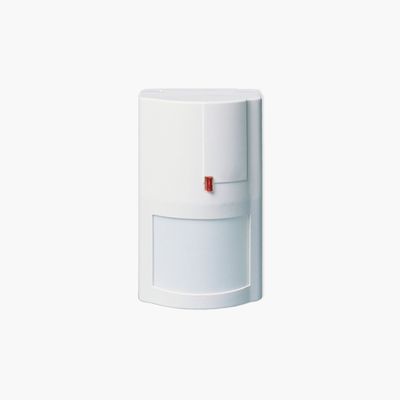

Designed with the installer in mind, these high performance small form factor motion detectors offer a trouble-free, out of the box experience to simplify the install process and reduce install time. With the passive infrared IS3035 and IS3050 and DUAL TEC DT8035 and DT8050, optimum performance is achieved using custom developed extended range Fresnel optics, look down, cover and wall tamper, and selectable pet immunity.
Main Features
Hardwired Motion Detection Sensor
Passive Infrared (PIR)
4-Wire
9VDC to 15VDC power rating
Up to 40' by 56' (12m to 17m) coverage
102 total detection zones
PIR white light immunity ~6,500 Lux
6 screw terminals
Operating Temperature: 14°F to 131°F (-10°C to 55°C)
