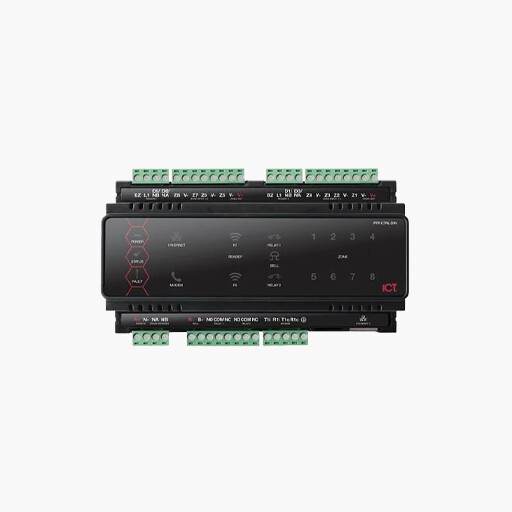

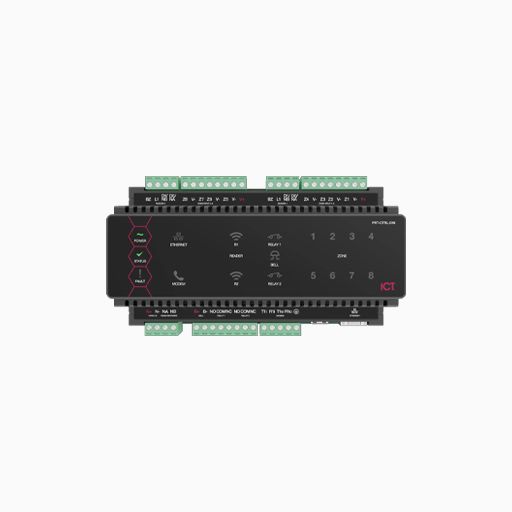

ICT PRT CTRL DIN Protege GX DIN Rail Integrated System Controller

Description

The Protege GX DIN Rail Integrated System Controller is the central processing unit responsible for the control of security, access control and building automation in the Protege GX system. It communicates with all system modules, stores all configuration and transaction information, processes all system communication, and reports alarms and system activity to a monitoring station or remote computer.

It communicates with all system modules, stores all configuration and transaction information, processes all system communication, and reports alarms and system activity to a monitoring station or remote computer.

Main Features

• Internal industry standard 10/100 Ethernet
• 32 Bit advanced RISC processor with 2Gb total memory
• Encrypted module network using RS-485 communication
• NIST Certified AES 128, 192 and 256 Bit Encryption
• Built-in offsite communications dialer (ContactID, SIA)
• 2 Reader ports, independently configurable for either Wiegand or RS-485 reader operation
• OSDP configurable RS-485
• 8 High security monitored inputs
• 2 High current Form C relay outputs
• 1 High current monitored bell output
