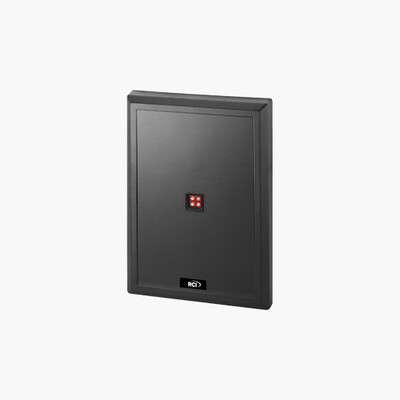

ICT PRX-TSEC-MINI-DF-B tSec Mini 13.56MHz Card Reader

Description

The tSec Extra RFID Card Reader provides a complete multi-technology smart card solution that is compatible with DESFire, MIFARE, and 125kHz cards. Compatible with all Wiegand data capable control systems and incorporating RS-485 communication, tSecReaders allow rapid deployment of secure technology in any environment.

Available in multiple card capabilities (13.56MHz, 125kHz and/or Bluetooth® wireless technology), with optional keypad and a choice of black or white, you can select the model to fit the needs and décor of any installation.

Main Features

• Optional vandal resistant cover
• Encrypted RS-485 or standard Wiegand connection
• Optional Bluetooth® / NFC Credential Reading
• Supports OSDP communication protocol with Secure Channel
• Read range up to 60mm (2.36") with proximity ISO cards
• Supports over 15 common credential technologies
• Fully encapsulated design with environment IP Rating of IP65 for outdoor and indoor operation
• Multi card technology provides support for DESFire, MIFARE, and 125kHz cards from a single reader
• Configurable LED strip 2 color control (blue and green) via external LED wiring, 16 color selectable for Protege function codes (RS-485 connection only)
