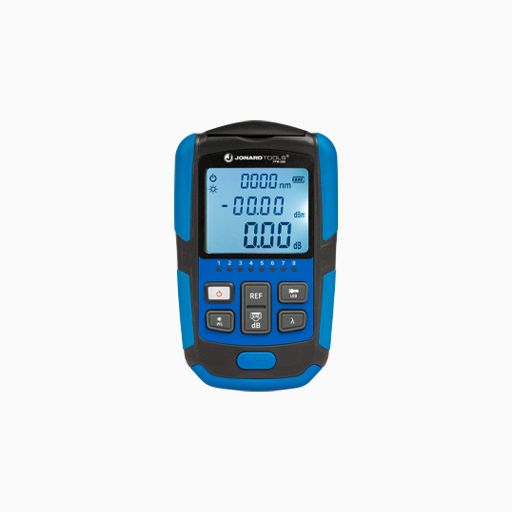

The Jonard Tools FPM-50S Mini Optical Power Meter features a built-in 2 mW visual fault locator, network cable tester and remote. It is designed to take precise measurements of the absolute optical power and relative power loss in fiber optic cables.
The OPM measures power from -50 to +26dBm at 10 preset calibrated wave lengths (850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm), with a mere 0.01 dB resolution. It also tests RJ45 connectorized network cables using built-in remote.
Main Features
The FC/SC adapters are for APC/PC/UPC connectors
Tests RJ45 connectorized network cables using built-in remote
Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch
Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01dB resolution
Comes with FC and LC adapters so that fiber connectors can be directly connected to the tool
Measures 10 preset calibrated wavelengths with high precision to determine absolute or relative power
LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
