RF receiver and transmitters featuring K-SMART, HID or Indala coils. The Keyscan K-RX receiver and transmitter series are advanced long-range radio frequency (RF) reader and credential products designed for use with Keyscan access control systems.
K-RX receivers and transmitters provide security and convenience by combining a radio frequency fob with an onboard proximity chip for use with systems equipped with supported low or high frequency Keyscan, HID, and Indala readers embedded into both fixed and mobile devices, providing advanced security and performance.
Main Features
Ideal for gate/garage applications avoiding costly trenching or installation of pedestals to mount readers
Permits tracking, usage reporting and assigning access when used with Keyscan hardware and software
Fobs work in long range RF mode as well as standard proximity format
K-RX is contained in a weather resistant NEMA 4, IP65 enclosure suitable for outdoor installations
Receiver provides four hardwired 36-bit Keyscan Wiegand outputs for connection to Keyscan access control units and for multiple device control using a single receiver

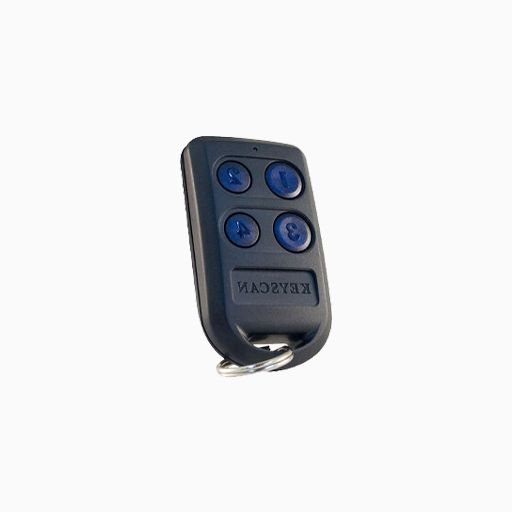

Four-button transmitter fobs are designed to support multiple receiver installations
Employs a rolling 40-bit code combined with a 256-bit key for encrypted anti-sniffing and anti-playback protection
