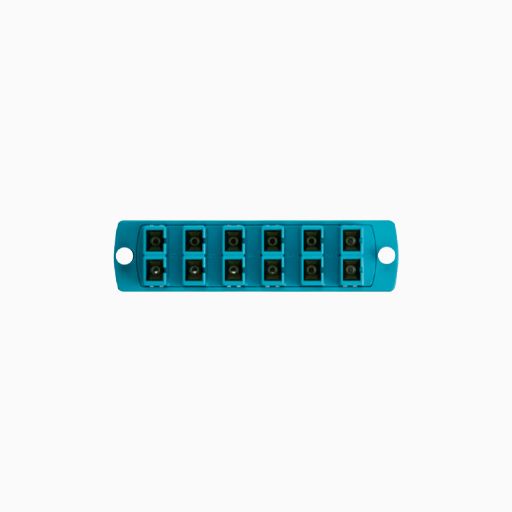

Leviton SDX fiber adapter plates are used in conjunction with SDX panels or enclosures (rack- or wall-mount) to provide a means to connect backbone to backbone or backbone to horizontal fiber cabling. SDX fiber adapter plates are offered in LC, SC, and ST versions.
The SDX adapter plate shall be modular and functional for use in an SDX panel or enclosure (rack- or wall-mount). The adapter plate shall be offered in LC, SC, and ST styles in 6, 12, or 24 fiber configurations.
Main Features
Integrated LC and SC plates (two pieces) eliminates rattling and loose fit
LC and SC plates offered in standard fiber type colors
Adapter plates offered in LC, SC, ST, and blank styles
Captive push-lock pins allow for quick tool-less installation
Compatible with all SDX panels and enclosures (rack- or wall-mount)
Adapter plates use zirconia ceramic sleeves for optimal performance in 1 Gbps and higher transmission speeds
Meets ANSI/TIA-604-2B (ST), -3B (SC), -10C (LC) for connector intermateability
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
