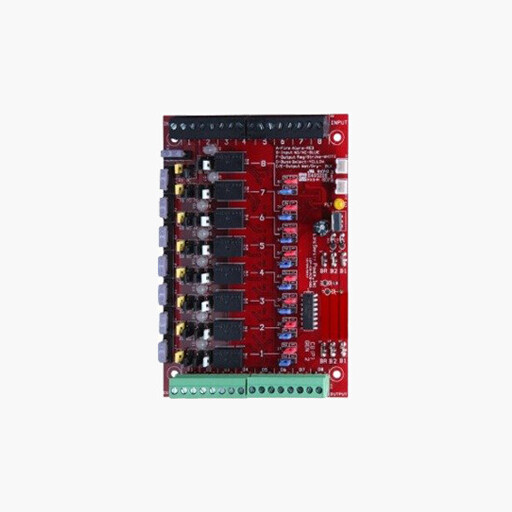

C4 and C8 power controller modules provide 4 or 8 relay controlled, protected outputs and 4 or 8 access control inputs. When used in a single voltage system, each individual output may be programmed for a continuous output or to respond to the input from the access control system.
A fire alarm interface to over ride the access control system for control of egress locks is provided for each output. When used in a dual voltage system, each individual output zone may be programmed to operate with either of the two system voltages.
Main Features
Listed for Fire Alarm, Intrusion, Access Control, CCTV and Mass Notification
Provides 4 or 8 trigger input zones for interface to an access control system
Provides 4 or 8 relay controlled output zones
Accommodates failsafe or fail secure locking devices
Provides fire alarm interface for egress lock control
Monitors fuse integrity of output zones and reports fault to host power supply
Status LEDs report zone activity
Each output zone is fused at 3A or 2.5A for PTC circuit breakers
PTC versions are low voltage, Class 2 power limited
