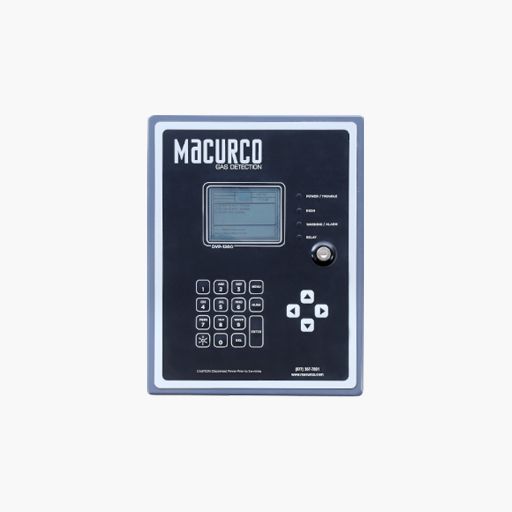

The DVP-1200 controller in conjunction with Macurco gas detectors provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field.
The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP.
Main Features
Three RS-485 channels can connect up to 192 detectors (64 per channel)
4-20mA outputs for VFD control
24VDC outputs for alarm, trouble, remote notification
BACnet IP (ethernet connection)
Lockable NEMA4X type enclosure
Total of eight zones can be defined
Event logging
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
