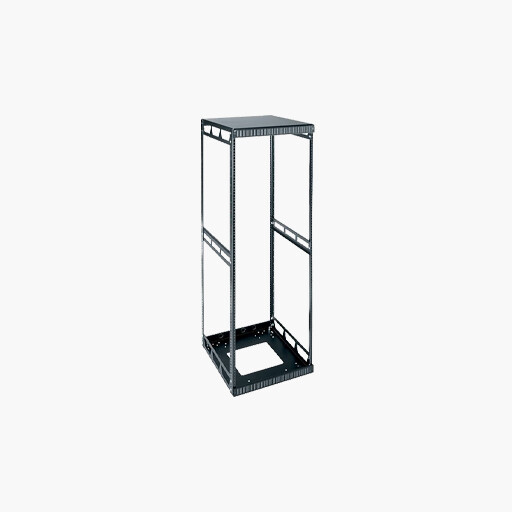

EIA compliant 19” gangable ready-to-assemble equipment rack shall be Middle Atlantic Products model # 5-(refer to chart). Overall dimensions of rack shall be 19.125” W x ” D x ” H, with a useable height of rack spaces (refer to chart). Rack shall have a 400 lb. weight capacity.
Slim 5 series rack shall be of ready-to-assemble construction. Rack top, bottom and horizontal braces shall be phosphate pre-treated and finished in black powder coat. Rack uprights shall be 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing with black e-coat finish and numbered rack spaces.
Main Features
All-steel construction, bolt-together design, and mechanically locking corners guarantee exceptional strength and years of use.
All rack rails finished in durable "e-coat" to prevent clogged threads.
Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
Pre-installed washers on all 10-32 threaded rack screws save installation time.
Tested and certified by United Laboratories, Inc. (UL) in the United States and Canada.
Lightweight, open design is easy to work with
Bolt-together design allows for flat shipment via UPS
Unique interlocking corner joint for exceptional strength and easy assembly
