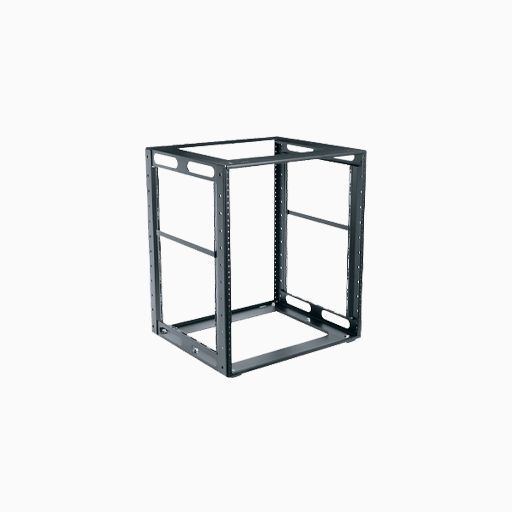

CFR series low profile design maximizes usable rackspace in entertainment systems, cabinets and similar spaces. Strong, welded steel frame construction allows for pre-loading equipment and transportation to the installation site.
Rack shall have a weight capacity of 250 lbs. Rack shall have rackspaces (refer to chart). Rack shall be constructed of the following materials: top and bottom shall be 16-gauge steel, rackrail shall be constructed of 11-gauge steel with tapped 10-32 mounting holes in universal EIA spacing.
Main Features
Low profile design maximizes the amount of useable rackspace
Features a strong welded frame that allows for pre-loading equipment and transportation to the installation site
Available in 16”, 18”, 20” and 23” depths
Available in 8 to 16 space useable racking height
Comes standard with two adjustable front to rear lacing bars for cable dressing or mounting accessories
Rackrail features offset cable tie area which keeps the rack to a slim 19-1/4” width
