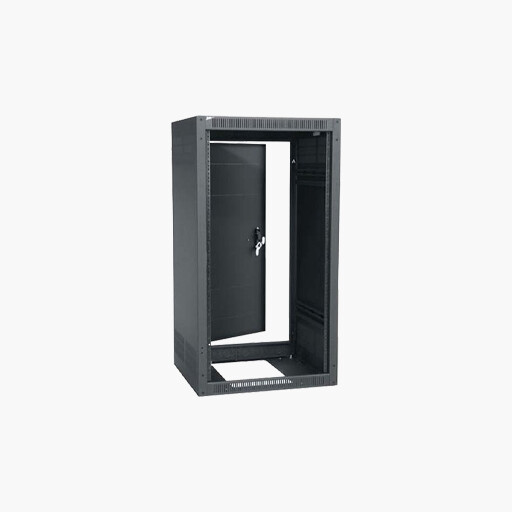

An economical standalone rack with solid sides, the ERK series can also be ganged to create partitioned multi-bay installations for thermal management control, future growth or other purposes. Seismic certified to protect your components.
Weight capacity shall be 1,000 lbs. [453kg]. Rack shall be constructed of the following materials: top and bottom shall be 14-gauge steel, horizontal braces shall be 16-gauge steel welded to integral structural side panels of 16-gauge steel giving an 1/8" [3mm] thick structure, all structural elements shall be finished in a durable black powder coat. Rack shall include a locking, latching rear door.
Main Features
1,000 lb. [453kg] weight capacity
1/8" [3mm] thick structural steel internal braces
22” [559mm] OD width, 25” [635mm] OD depth
1/2" , 3/4", 1” & 1-1/2" electrical knockouts on removable rear plates top and bottom, easily removable for cable pass-through Top plate additionally includes UHF / VHF knockouts
Standard front, optional rear 11-gauge 10-32 threaded rackrail with numbered rackspace increments
