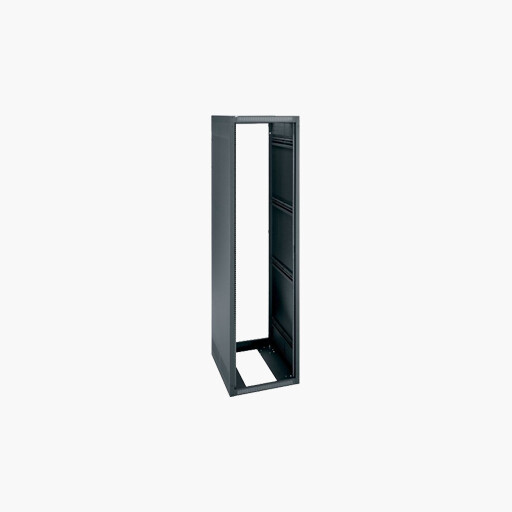

An economical standalone rack with solid sides, the ERK series can also be ganged to create partitioned multi-bay installations for thermal management control, future growth or other purposes. Seismic certified to protect your components.
ERK shall be finished in a durable black powder coat. ERK shall come equipped with one pair of fully adjustable 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing, black e-coat finish and numbered rackspaces. ERK shall include solid locking rear door standard and solid sides with vertical slotted vent pattern at top and bottom (and laser knockouts for cable pass-through on 44, 40, and 35 space models).
Main Features
Fully welded construction
2,500 lb. weight capacity
1/8” thick structural steel internal braces
UL Listed in the US and Canada
Seismic certified (when used with ERK-Z4 option) with an IP value of 1.5
22” OD width, available 20”, 25” or 28” OD depth • 1/2” , 3/4”, 1” & 1-1/2” electrical knockouts on removable split rear plates top and bottom, easily removable for cable passthrough. Top plates additionally include UHF/VHF knockouts
Standard front, optional rear 11-gauge 10-32 threaded, fully ad justable rackrail with numbered rackspace increments
Key locked solid rear door standard, optional vented rear doors available
Optional front doors available
Configurable top options on 44, 40, and 35 space sizes
