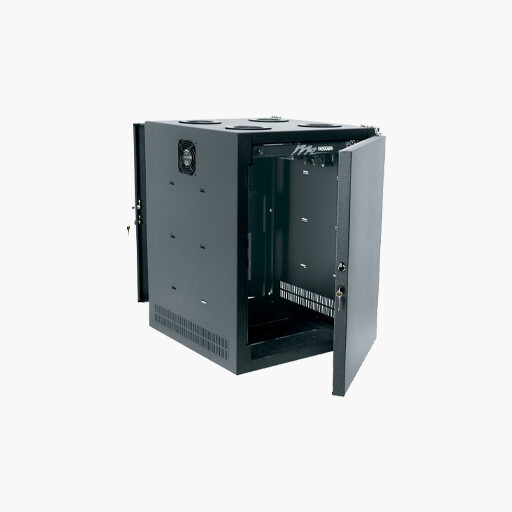

Choose the IDF when rack mounting hubs, routers and other equipment overhead in warehouses, retail outlets or any larger, open location. Mounts to building truss or Unistrut® beams using 1/2" threaded rod, or directly to Unistrut beams. Includes safety lanyard. A great solution for distributed systems.
Weight capacity shall be 1,000 lbs. [453kg]. Rack shall be constructed of the following materials: top and bottom shall be 14-gauge steel, horizontal braces shall be 16-gauge steel welded to integral structural side panels of 16-gauge steel giving an 1/8" [3mm] thick structure, all structural elements shall be finished in a durable black powder coat. Rack shall include a locking, latching rear door.
Main Features
Mounts overhead directly to uni-strut beams or from trusses using threaded rods (not included)
Dual exhaust fans extend equipment life
Removable aluminum plate in the bottom of the enclosure can be machined in the field to mount wireless antennae, dome cameras and more
Multiple UHF/VHF antenna knockouts on the bottom of the enclosure
Grounding/bonding stud in top of enclosure facilitates proper grounding and bonding of electronic equipment, as per NEBS and NEC standards
Ships with included rackmount power distribution unit, model # PD-915R
