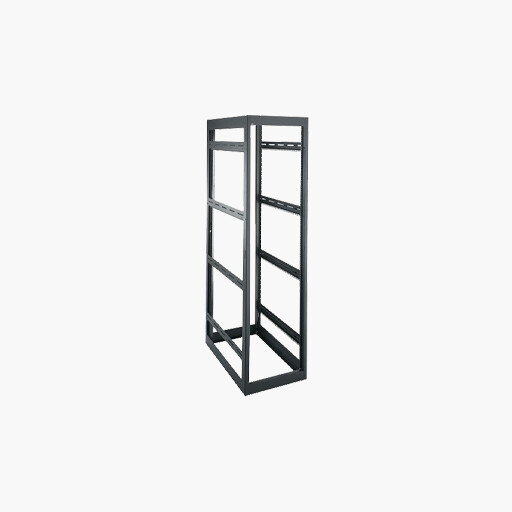

EIA compliant 19” gangable equipment rack shall be Middle Atlantic Products model # MRK-(refer to chart). Overall dimensions shall be ”H x 22”W x ”D (refer to chart). Useable height shall be rack spaces, useable depth shall be” (refer to chart). Fully welded construction shall provide a UL Listed load capacity of 2,500 lbs.
Rack shall be constructed of steel and all structural elements shall be finished in a durable black powder coat. Rack shall include a locking, latching rear door. Rack shall come equipped with two pairs of steel rackrail with tapped 10-32 mounting holes in universal EIA spacing, black e-coat finish and numbered rackspaces (select models also available with cage nut style rackrail, refer to chart).
Main Features
Fully welded construction provides the following weight capacities: UL Listed load capacity: 2,500 lbs., seismic certified capacity - 1,050 lbs.
22” OD width with multiple depths available
1/2”, 3/4”, 1” & 1-1/2” electrical knockouts on split rear plates top & bottom, easily removable for cable pass-through, top plates additionally include UHF/VHF knockouts
Two wide pairs of 10-32 threaded rackrail with numbered rackspace increments
Optional solid, fully vented, plexi and vented plexi front doors available
Open top with configurable top panel options
Durable black textured powder coat finish
Seismic certified (when used with MRK-Z4 option) with an Ip value of 1.5
