The TriStar meters are 2 x 16 character LCD’s that display system and controller information, logged data, bar graph metering, alarms and faults for easy troubleshooting.

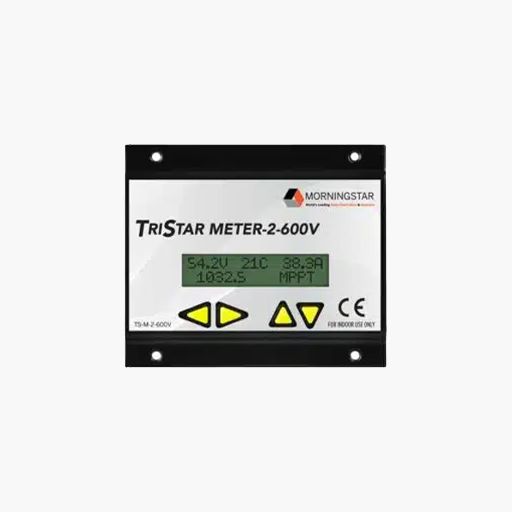

The TriStar Meter-2™ (TS-M-2), TriStar Meter-2-600V™ (TS-M-2-600V) and the TriStar Remote Meter-2™ (TS-RM-2) are advanced digital meters. They are nearly identical except that the TS-M-2 and TS-M-2-600V are mounted on the controller and the TS-RM-2 is flush mounted up to 30 meters away from the controller.
Main Features
Uses standard 6 conductor RJ-11 connectors
Displays individual controller data from up to 15 TriStars with optional Morningstar MeterHub
Four directional pushbuttons for easy navigation of display screens
Auto detects any device found on the network
Aggregates system data to show total charge, load and battery charge/discharge state
Network supports up to 15 devices and, optionally, more than one meter per system
Meter may be added during initial controller installation, added as an upgrade anytime in the future or connected temporarily for troubleshooting with the ability to use this same meter at other sites
