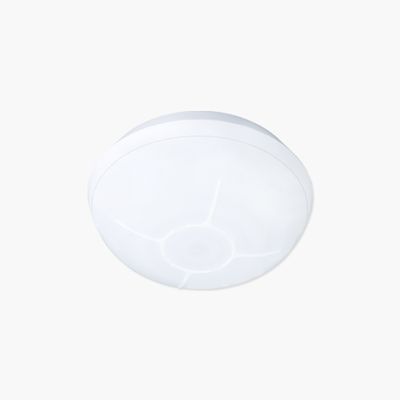

Optex SX 360Z Redwall 360 Grade Ceiling Mount PIR Sensor

Description

The SX-360Z ceiling-mount detector, with its unique zoom function and highly dense, triple-element detection pattern, provides 360° of unsurpassed detection performance at any ceiling height up to 16ft high.

By simply twisting the units domed lens, the detection pattern can be easily adjusted at any installation height, making it one of the most flexible ceiling detectors on the market.

Main Features

• Flexible Pattern Adjustment with Zoom Function (Patent Listed)
• Circular Detection Area with 276 Dense Zones
• Selectable Pulse Count: 1,2 to 4
• Selectable Sensitivity : High, Medium or Low
• Multi-focus optics
• Highly dense coverage (276 zones)
• In-Line Quad Element (Triple Dual)
• RFI Immunity 30V/m
• Multilevel Pattern
• UL/ULC Listed
