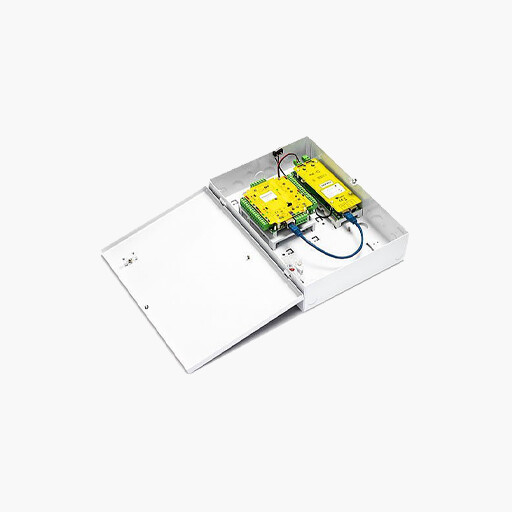

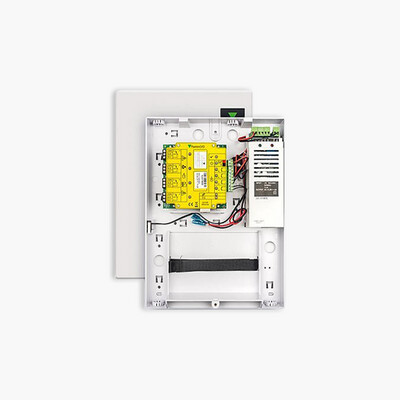

Control units are sold as a PCB only, within a plastic housing or mounted within a 2A boxed metal/plastic mains monitored backup power supply. The Net2 plus unit now comes with PoE+ power supply in metal/plastic cabinet; no separate mains supply back-up required.
One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is also available with a Power over Ethernet (PoE) power supply.
The kit includes:
(2) 682-630-US; Net2 Plus in Metal Cabinet with PoE+ Power Supply
(2) 345-220-US; P50 Mullion Readers
(1) 514-326-US; USB Enrollment Reader
(1) 930-010-US; Net2 Pro Software
(1) 692-500-US; Net2 Prox ISO Cards without Magstripe – Pack of 10
(1) 695-644-US; Net2 Prox Keyfobs – Box of 10
Main Features
Single door networkable access control unit
Plug into a TCP/IP network using a standard RJ45 plug
Net2 plus can replace a TCP/IP convertor
Net2 plus can also connect using RS485
Net2 plus, Net2 classic and Net2 nano control units can be mixed on a site
Diagnostic LEDs
FLASH memory allows easy upgrades
Use Paxton Access or 3rd party readers
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
