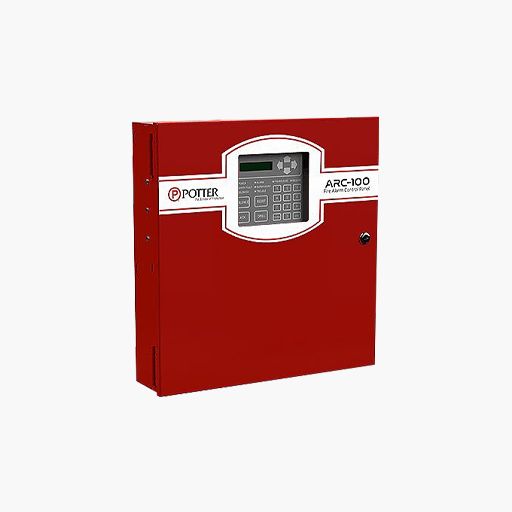

The ARC-100 is an analog/addressable releasing fire alarm system with a total system capacity of 100 addresses. Additional capacity on the system is achieved using multi-point SLC modules.
Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
Main Features
100 addresses available on this analog addressable system
Additional system capacity achieved via multi-point SLC modules
NFPA 72 Compliant Smoke Sensitivity Test Built-In
System Operates as Class A or Class B for SLC, P-Link and NACs
5 Amp Power Supply, Expandable to 310 amps
2 NACS, Regulated, Rated at 3 Amps each, expandable to 188
Dedicated Alarm, Supervisory and Trouble Relays
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
