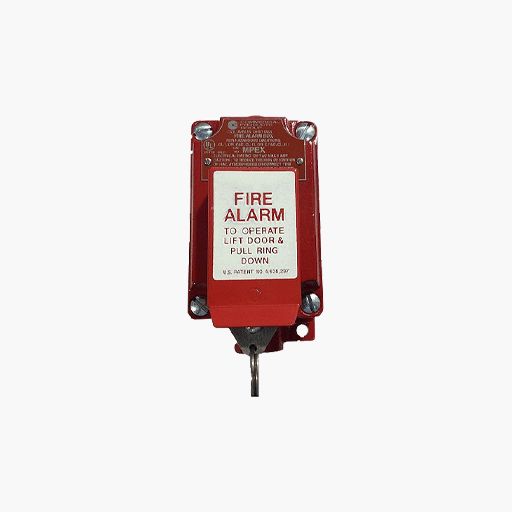

Explosion Proof MPEX Pull Stations are designed for use in Class I, II, and III hazardous areas. A hinged cover holds a sliding actuator plate in place.
By lifting the cover and pulling down the ring, a compression spring is released, thus allowing the internal switching device (contact block) to return to its normal position, activating the alarm circuit.
Main Features
Enclosure is made of copper free cast aluminum alloy
120VAC, 60Hz, 6 amps, with 2 - 3/4” NPT feed through conduit openings
UL, ULC, and CSFM Listed
Lift cover and pull down ring to activate
Rated NEMA 7 for Groups C & D and NEMA 9 for Groups E, F and G
UL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F and G; and Class III
Red, textured powder epoxy paint finish is standard on box and cover, providing high visibility for alarm station
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
