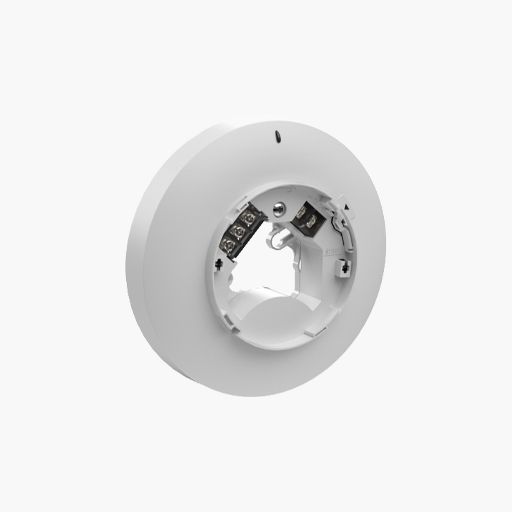

The Addressable Relay Base 6” (PAD300-RB) is combination detector base with a relay module included. The base has a locking feature for the detector that may be used or removed in the field.
The PAD300-RB provides one form C relay output. The relay is rated for 2A at 30 VDC, and 0.5A at 125VAC. The PAD300-RB provides for separation of high voltage and non-power limited connections from the power limited Signaling Line Circuit (SLC).
Main Features
One form C relay as part of the base assembly
Relay rating: 2A @ 30VDC, 0.5A @ 125VAC
Works independent of the detectors attached
May be mapped to any device connected to the Control Panel
LED to indicate that the unit is active
Separation included in the base for high and low voltage and power limited/non-power limited connections
Terminals accept 22 to 12 AWG wire sizes
Supports Class A, Class X and Class B wiring
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
