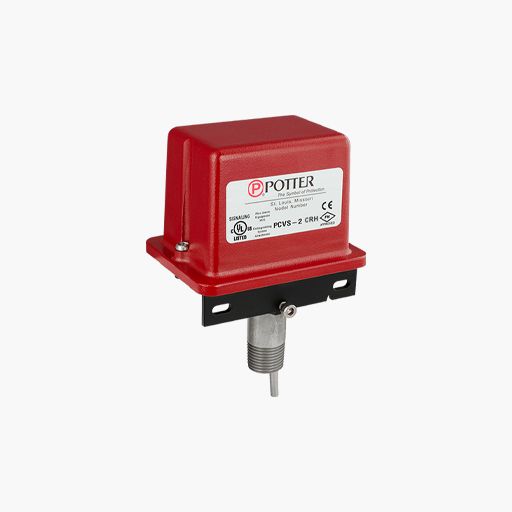

The Model PCVS-CRH is a weather proof and tamper resistant switch for monitoring the open position of fire sprinkler control valves of the wall and yard post indicator and butterfly types.
The unit should be installed where it is accessible for service. The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.
Main Features
-40º to 140º (-40ºC to 60ºC) operating temperature range
Visual Switch Indicators
Two conduit entrances
Adjustable length trip rod
Accommodates up to 12AWG wire
Switch detects tampering and valve closure
RoHS compliant
Two SPDT contacts
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
