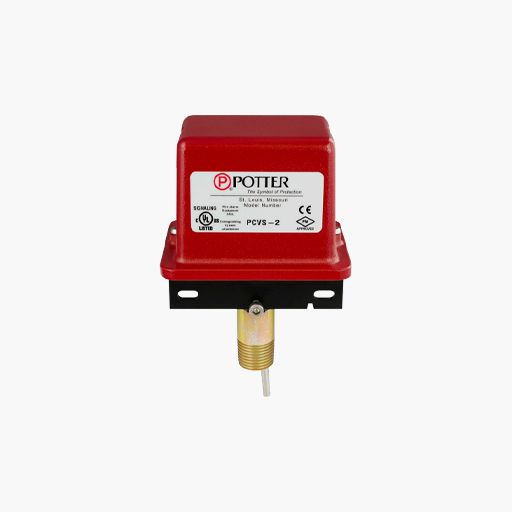

The Model PCVS is a weather proof and tamper resistant switch for monitoring the open position of fire sprinkler control valves of the wall and yard post indicator and butterfly types.
The unit mounts in a 1/2” NPT tapped hole in the post indicator or butterfly valve housing. The device is engaged by the indicating assembly of the post indicator or the operating mechanism of the butterfly valve, actuating switches when the valve is fully open.
Main Features
-40º to 140º (-40ºC to 60ºC) operating temperature range
Visual Switch Indicators
Two conduit entrances
Adjustable length trip rod
Accommodates up to 12AWG wire
Switch detects tampering and valve closure
RoHS compliant
Two SPDT contacts
NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
