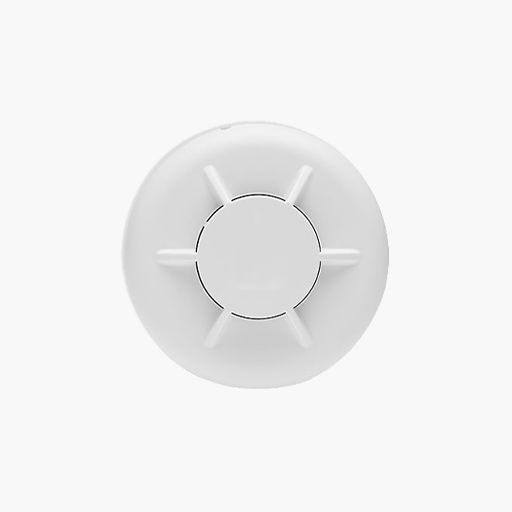

Qolsys QS5519-840 Wireless 319.5MHz Heat Detector

Description

The IQ Heat 135/200 wireless heat detector uses electronic processing to detect heat conditions plus a wireless transmitter (319.5MHz) in one unit.

The microprocessor trips the transmitter when the temperature at the detector location reaches a fixed temperature of 135°F (57°C) or 200°F (93°C), depending on selection, or senses a rate of rise at 12°F to 15oF (6.7 to 8.3oC) per minute.

Main Features

• Rate of Rise rating, 12° to 15°F (6.7° to 8.3°C) per minute
• UL Max Ambient Ceiling Temp, 100°F/150°F (37.8°C/65.6°C)
• Storage Temperature, -30 to 167°F (-34 to 75°C)
• Relative Humidity, 0 to 95% noncondensing
• Frequency,: 319.5 MHz (crystal-controlled)
• Enclosure Dimensions, Diameter 2.29” (58.25mm), Height 1.28” (32.4mm)
