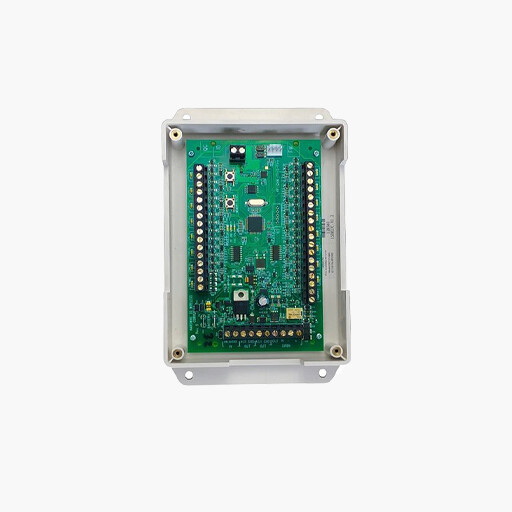

The IQ Hardwire 16-F (Small Enclosure) offers a cost effective way of integrating hardwired security & smoke detector zones with the IQ Panel 2/2+. It includes a small enclosure designed to be mounted in an existing can, backup battery charging.
500mA of 12volt auxiliary power, an onboard siren relay, built-in status LED’s for each zone and support for up to 10 two-wire smoke detectors. Normally Open and Normally Closed contacts are supported as well as powered zones like motion sensors and glass break detectors.
Main Features
Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
Supports up to ten two wire smoke detectors
LED lighted zones for ease of "learn-in" installation/troubleshooting
EOL supervision using 4.7K Ohm resistors (included)
Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
Charging circuit for back-up battery, fully supervised with power outage recovery
