The 960 tamper resistant keyswitch series is available in momentary (SPDT/DPDT), maintained (SPDT/DPDT), or time-delay (2-SPDT) operating versions. The keyswitch is a one-piece bracket with two-position switch holder.

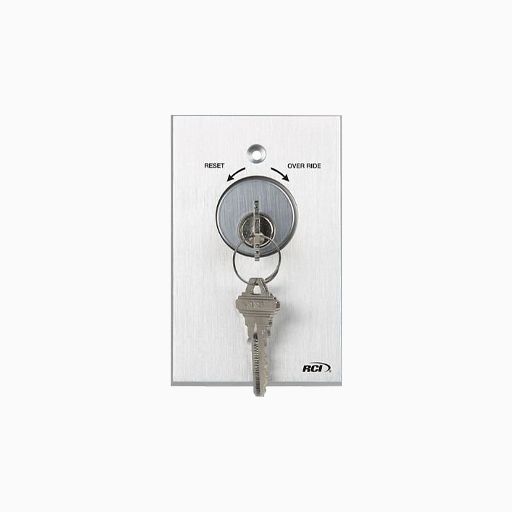

The RCI 960RO provides a screen-printed reset/override with directional arrows to indicate the simple function of the corresponding switch. The RCI 960 & RCI 960RO are compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available).
Main Features
Key cylinder sold separately
One-piece bracket with two-position switch holder
Hardware kit includes stainless steel tamper-proof screws and spanner bit
Quickly mounts to single gang box (Standard) or narrow-stile door frames (Narrow)
Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
Momentary (SPDT/DPDT), maintained (SPDT/DPDT) or time-delay (2-SPDT) switches available
Faceplate available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish
