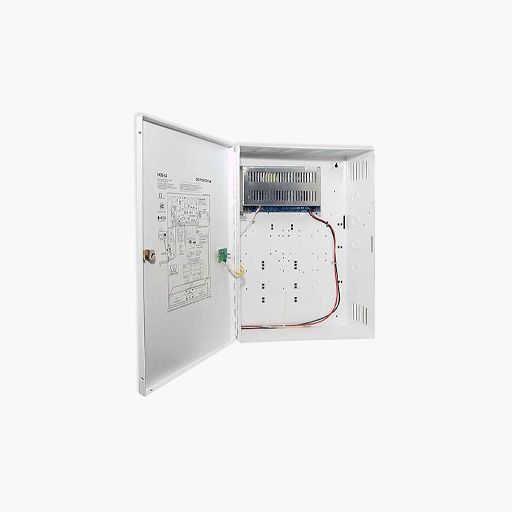

The DKPS series power supply has 2 supervisory outputs (AC power fail & battery fail) and the power distribution controller board also has 2 supervisory outputs (DC Fail & status) that can be connected to remote access control units to monitor the power supply operation.
This DKPS model includes a power distribution controller board that features electronic over-current protection on the 8 voltage outputs that can be used in a wide array of access control and egress door applications.
Main Features
Fault and overload protection
Supervisory outputs for remote monitoring
Remote reset of power supply after fire alarm
Status LEDs on enclosure front door (Green, Yellow, Blue)
Optional front door tamper switch or dual door and wall removal tamper switches
Supervised connection to fire panel or access panel for automatic unlocking of specified doors
Convenient metal housing which can accommodate up to two (2) 7 AH rechargeable batteries depending on your application
Low battery indication at 11.40/22.80 volts
Immediate switch-over to stand-by battery upon AC failure
