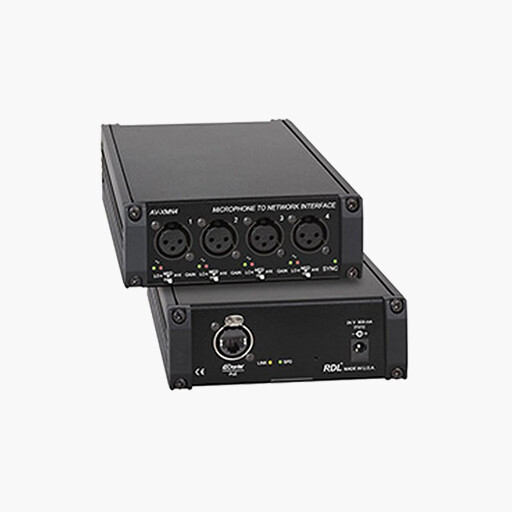

The AV-XMN4 is an interface that converts four XLR microphone inputs to Dante network audio channels. Special software is not required to configure the AV-XMN4. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones.
A dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. P48 phantom voltage is supplied to each microphone input. The AV-XMN4 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance.
Main Features
Dante Network Interface for Four Audio Mic Inputs
Each XLR Input Provides Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
48 V Mic Phantom (P48) on each input
Four XLR Front-Panel Inputs
Converts Four Standard XLR Mic Audio Sources to Dante Network Channels
Special Software Not Required for Module Setup
High Resolution 24 Bit Analog to Digital Conversion
LED Indicator for Valid Power and Network Sync
Operation from PoE Power (Class 0, IEEE 802.3af) or external 24 Vdc
